Product Information :

Name :
Air Shaft
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. 1 Air Shaft
Brand :
Nitco
Model :
Nitco
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
  2. วัตถุดิบ
  3. สินค้า, ผลิตภัณฑ์

Product Detail :

Air Shafts

The Height
‧ Web Speed
‧ Reel Duty
‧ Efficient Production
‧ Durability
‧ Accuracy
‧ Torque Grip to satisfy your demands!
Air Shafts
Air Shafts


Air (Expanding) Shafts

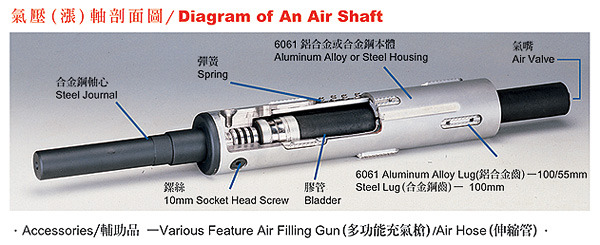

Air (expending) shafts are expanded immediately under air pressure for instant roll mounting and gripping securely and fast without damage to the core or roll. Moreover, at the touch of the fingers (keys, lugs etc.) between shaft and core, they collapse positively for quick roll removal. The shafts consist of three basic parts - a metal body cast in tough, durable, steel or aluminum alloy, an uniquely elastomeric air expanding element and end journals treated with phosphorous salt film. Simplicity and high reliability of shaft design, and high tension strength-to-weight ratio assure rugged, reliable performance with minimum maintenance in excellent economy and ease of operation.

All air (expanding) customized (OEM and ODM) shafts (Button, Key, Lug, Leaf types) are our custom manufactured to your specifications. And standardized components facilitate quick, cost-effective construction and replacement .
Applications :
Shafts are engineered to meet the demands of virtually every rewinding and unwinding application. Especially, OEM and ODM shaft products from customers are acquired for various processes in a wide variety of converting and printing systems. Each type widely offers various special options such as aluminum construction, cantilevered support and more.
Features :
1. Low Price and Patented Products
2. Greatest Gripping Force
3. Quick Actuation and Easy Replacement
4. Easy Maintenance and Utmost Durability
5. No Core Slip and No Damage to The Core
Types :
版片式,鍵齒式,凸圓式,膠條式...等,完全是以客戶所需規格為導向的訂製品。
Materials :
鋁合金,合金鋼,中碳鋼以及不鏽鋼等材質。
尺寸:
氣漲軸的外徑 Ø1" Ø1.5" Ø2" Ø3" Ø4"............. Ø12" Ø14" .............
氣漲軸的尺寸,長度,型式皆以客戶所需的規格來訂製。

Air Shaft



Types

Diameter:
o 8 ~ o 400mm
Length:
50mm ~ 7000mm

1. Button Type

2. Serrated Key Type

3. Lug/Stripe Type

4. Leaf Type

Materials:

1. 6082 Aluminum Alloy Treated
by Anode with Hard Film
2. First Grade Seamless Steel
with Chrome-Plated Surface





Air Shaft

Air Shaft

Air Shaft



AIR SHAFT SERIES Diameter/ o
300, 150, 74, ...36, 15, 8mm
AIR SHAFT SERIES

AIR SHAFT SERIES Diameter/ o
300mm VS 15mm

AIR SHAFT SERIES



Leaf Type - Patented !
Leaf TypeLeaf Type

Lug/Stripe Type - Patented!
Leaf Type

Leaf Type

Cross-sectional Profile
Cross-sectional Profile
Cross-sectional Profile



Types
Pneumatically expanding winding shaft, for winding without cores


Materials
1. 6082 Aluminum Alloy Treated by Anode with Hard Film
2. First Grade Seamless Steel with Chrome-Plated Surface

AIR SHAFT SERIES

AIR SHAFT SERIES


Air(pneumatic) Shafts
Lowest Cost/Highest Reliability/Steel Housing-heaviest duty/ Aluminum Alloy Housing-light weight/1-year Comprehensive Warranty/Custom specification are available/ Automated roduction/Professional design and evaluation/ O.D.-8mm~400mm or more/Length-50mm~7000mm or more.

Air  Shaft 1 Applications:For Printing/
Paper/Laminating/Rewinding/Slitting
Industries etc.
Type:Lug or Leaf Type
diameter Length:To your specifications

Air  Shaft 2 Applications:For Biotechnology Industry
Type:Lug or key Type
O.D.: 20mm

Air  Shaft 3 Applications:For Semi-conductor Industry
Type: Lug or key Type
O.D. Length:To your specifications

Air  Shaft 4 Applications:For Chemical Fiber or Textile Industry
Type:Leaf Type
O.D.Length:To your specifications

Air  Shaft 5 Rewinding Air Shaft For Winding Without Cores
Applications:For Waste Trimming Equipments of Slitting Industry
Type: Leaf Type
O.D. Length:To your specifications

Air  Shaft Applications: For Pharmaceutical Industry
Type: O.D. 12mm
Length:To your specifications

Applications: For Clean Room
Type: Lug or key Type
O.D. Length: To your specifications

Air  Shaft Applications: For Roll and Adhesive Tape Cutting
Industry
Type: Lug or key Type、leaf Type
O.D. Length:To your specifications

Air  Shaft Applications: For Adhesive Tape Industry
Type: Lug or key Type、leaf Type
O.D. Length: To your specifications

Air  Shaft Applications:For Electronic Industry
Type: Leaf Type
Length: To your specifications

Air  Shaft Applications: For Shrink Film Making、Labeling、Bag
Making Industries
Type: Leaf Type
O.D. Length:To your specifications
