Product Information :

Name :
BK6-M
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Temperature Controller (Indicator)
Brand :
Hanyoung
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :

- User input selection
- Transmission output
- Transmission output scale


Suffix code

Model Code Information

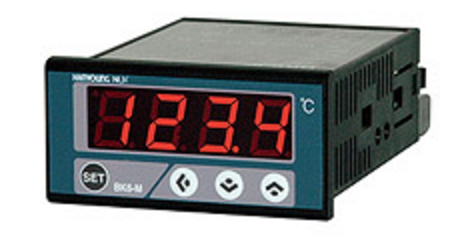

BK6-M Multi input digital indication thermometer 72(W) X 36(H) ㎜
Optional 0 None
1 RET (Retransmission output 4 - 20 ㎃ DC

Specification

Model BK6-M
W × H × D (mm) 72 × 36 × 86
Power Supply Voltage 100 - 240 V a.c, 50 - 60 ㎐
Input Multi input
Thermocouple : K, J, E, T, R, B, S, L, N, U, W, PLII R.T.D : Pt100 Ω(IEC 751), KPt100 Ω(KS)
Display accuracy ±5 % of FS ±1 digit
Voltage fluctuation ±10 % of power supply voltage
Power consumption 4 VA max
Ambient temperature 0 ~ 50 ˚C (without dew condensation)
Ambient humidity 35 ~ 85 % RH
Storage temperature -25 ~ 65 ˚C (without dew condensation)
Vibration resistance 10 - 55 ㎐ single amplitude 0.76 ㎜ for 2 hours each in 3 axis direction
Shoc resistance 300 ㎨ to the 6 direction each 3 times
