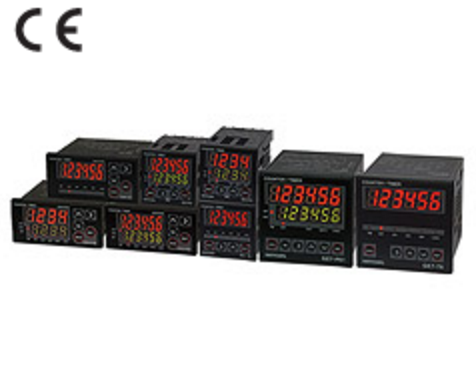

E-Catalog > Counter / Timer (Counter & Timer) > GE series
Product Detail :
- Batch function
- NPN/PNP input selectable
- Pre-scale setting
- Display decimal points up to 4 digits
- Off set setting
Suffix code
| Model | Code | Information | ||||
| GE |  - |
|
|
|
|
Digital Counter |
| Dimension | 3 | 96 × 48 mm | ||||
| 4 | 48 × 48 mm | |||||
| 6 | 72 × 36 mm | |||||
| 7 | 72 × 72 mm | |||||
| Type | P | Pre-set counter | ||||
| T | Total counter (only for indication) | |||||
| Displayable digit | 4 | 4 digits (9999) ※ GE3 and GE7 are not selectable | ||||
| 6 | 6 digits (999999) | |||||
| Setting level (excludes the total counter) |
1 | 1st level setting | ||||
| 2 | 2nd level setting | |||||
| Power supply voltage | A | 100 - 240 V a.c. 50 - 60 ㎐ | ||||
| D | 24 - 60 V d.c / a.c 50 - 60 ㎐ | |||||
Specification
| Model | GE6-P4 | GE6-P6 | GE6-T6 | GE4-P4 | GE4-P6 | GE4-T6 | |
| W × H × D (mm) | 72 × 36 × 86 | 48 × 48 × 85 | |||||
| Type | Preset | Display | Preset | Display | |||
| Display digit | 4Digits 2Stages | 6Digits 2Stages | 6Digits 1Stages | 4Digits 2Stages | 6Digits 2Stages | 6Digits 1Stages | |
| FND Hight | PV : 11 mm SV : 8 mm | PV : 11 mm SV : 8 mm | |||||
| Function | Out-counter setting & Indication(Exception : Indication) | Out-counter output & constant output | |||||
| PNP / NPN Input selection, built-in switch | Twin timer(On/Off Time separate setting) | ||||||
| Dual counter function (CP1+CP2) | Flicker MODE 99.99 sec setting | ||||||
| Prescale function | Key Lock function | ||||||
| OFFSET setting function(Standard value when reset) | P.V storage function when power off | ||||||
| Counting speed & Input | 1 / 30 / 1 K / 10 Kcps, Contact, Non-contact | ||||||
| Reset | External reset signal width 0.1 ms / 1 ms / 20 m sec selectable | ||||||
| Input type | CP1, CP2, RST, RST.B (TOTAL is exception) 4 Input | ||||||
| [H]Level 4 - 30 V d.c [L]Level 0 - 2 V d.c NPN / Internal full-up by PNP setting / full-down resistance connection(4.7 ㏀) | |||||||
| Power voltage | 1. 100 V - 240 V d.c / a.c 50 - 60 ㎐(± 10%) | ||||||
| 2. 24 V - 60 V d.c / a.c 50 - 60 ㎐(± 10%) | |||||||
| Consumption power | About 12 VA(220 V a.c 60 ㎐) | ||||||
| Power supply to sensor | +12 V d.c (Voltage fluctuation rate : Max. ±5%) 200 mA Max. | ||||||
| Control output | RELAY1 | 1a (250 V a.c 3 A) | - | 1c (250 V a.c 3 A) | - | ||
| RELAY2 | 1c (250 V a.c 3 A) | 1c (250 V a.c 3 A) | |||||
| TR1/TR2 | NPN open collector 30 V d.c 100 mA Max. (Refer to terminal structure) | ||||||
| Dielectirc strength | - | ||||||
| Ambient temperature & humidity | -10 - 50 ˚C 30 - 85 % R.H. (Without condensation) | ||||||
| Protection structure | IP65(Front) | ||||||
| Model | GE3-P6 | GE3-T6 | GE7-P6 | GE7-T6 | |
| W × H × D (mm) | 96 × 48 × 100 | 72 × 72 × 87 | |||
| Type | Preset | Display | Preset | Display | |
| Display digit | 6Digits 2Stages | 6Digits 1Stages | 6Digits 2Stages | 6Digits 1Stages | |
| FND Hight | PV : 13 mm SV : 10 mm | PV : 13 mm SV : 10 mm | |||
| Function | Out-counter setting & Indication(Exception : Indication) | Out-counter output & constant output | |||
| PNP / NPN Input selection, built-in switch | Twin timer(On/Off Time separate setting) | ||||
| Dual counter function (CP1+CP2) | Flicker MODE 99.99 sec setting | ||||
| Prescale function | Key Lock function | ||||
| OFFSET setting function(Standard value when reset) | P.V storage function when power off | ||||
| Counting speed & Input | 1 / 30 / 1 K / 10 Kcps, Contact, Non-contact | ||||
| Reset | External reset signal width 0.1 ms / 1 ms / 20 m sec selectable | ||||
| Input type | CP1, CP2, RST, RST.B (TOTAL is exception) 4 Input | ||||
| [H]Level 4 - 30 V d.c [L]Level 0 - 2 V d.c NPN / Internal full-up by PNP setting / full-down resistance connection(4.7 ㏀) | |||||
| Power voltage | 1. 100 V - 240 V d.c / a.c 50 - 60 ㎐(± 10%) | ||||
| 2. 24 V - 60 V d.c / a.c 50 - 60 ㎐(± 10%) | |||||
| Consumption power | About 12 VA(220 V a.c 60 ㎐) | ||||
| Power supply to sensor | +12 V d.c (Voltage fluctuation rate : Max. ±5%) 200 mA Max. | ||||
| Control output | RELAY1 | 1a (250 V a.c 3 A) | - | 1c (250 V a.c 3 A) | - |
| RELAY2 | 1c (250 V a.c 3 A) | 1c (250 V a.c 3 A) | |||
| TR1/TR2 | NPN open collector 30 V d.c 100 mA Max. (Refer to terminal structure) | ||||
| Dielectirc strength | - | ||||
| Ambient temperature & humidity | -10 - 50 ˚C 30 - 85 % R.H. (Without condensation) | ||||
| Protection structure | IP65(Front) | ||||
