นิทโก้พลัส : HY series

Product Detail :

- Clear Digital indication
- Alarm set up (HY-8200s)
- Simple temperature set up
- Proportioning control or ON/OFF control

Suffix code

Model		Code					Information
HY -							Digital temperature controller
Dimension	8000S						96 × 96 mm
	8200S						96 × 96 (alarm setting general specification)
	72D						72 × 72
	48D						48 × 48
Control type		F					ON/OFF control
Control type		P					Proportional control
Input			K				K thermocouple
			J				J thermocouple
			R				R thermocouple
			D				RTD KPt 100 Ω
			P				RTD Pt 100 Ω (IEC)
			V				1 - 5 V d.c
			C				4 - 20 mA d.c
Control Output				M			Relay
				C			Current output (4 - 20 mA d.c)
				S			S.S.R (voltage pulse output, 12 V d.c)
Alarm Output					N		None
Alarm Output					O		High alarm (HY-8200S)
Control action(Internal selection)						R	Reverse action (heating control)
Control action(Internal selection)						D	Direct action (cooling control)
Range Code							Refer to the range and input code

Classification	code	HY-8000S, 8200S		HY-72D		HY-48D
Classification	code	Input type	Range (℃)	Input type	Range (℃)	Input type	Range (℃)
Thermocouple	4	-	-	-	-	K, J	0 ~ 299
	5	-	-	-	-	K, J	0 ~ 399
	6	K, J	0 ~ 199	K, J	0 ~ 199	-	-
	7		0 ~ 299		0 ~ 299
	8		0 ~ 399		0 ~ 399
	9		-		0 ~ 599
	10		0 ~ 599	K	0 ~ 799
	11	K	0 ~ 799		-
	12		-		0 ~ 1199
	13		0 ~ 1199	R	600 ~ 1699
	14	R	600 ~ 1699	-	-
RTD	1	-	-	-	-	-	-49 ~ 49
	2	Pt100 Ω	-99 ~ 99	Pt100 Ω	-99 ~ 99		-99 ~ 99
	3		-99 ~ 199		-99 ~ 199		0 ~ 199
	4		0 ~ 99		0 ~ 99		0 ~ 299
	5		-		-		0 ~ 399
	6		0 ~ 199		0 ~ 199	-	-
	7		0 ~ 299		0 ~ 299
	8		0 ~ 399		0 ~ 399
Voltage/Current (DC)	-	1 - 5 V	0 ~ 99	1 - 5 V	0 ~ 99	1 - 5 V	0 ~ 99
	-	4 - 20 ㎃	0 ~ 99	4 - 20 ㎃	0 ~ 99	4 - 20 ㎃	0 ~ 99

Specification

Model		HY-8000S	HY-8200S	HY-72D	HY-48D

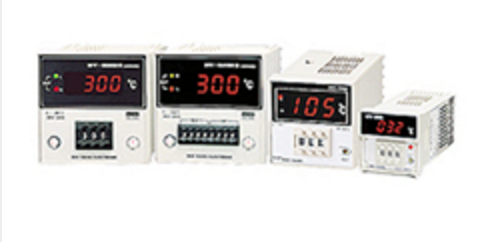

Appearance
W × H × D (mm)		96 × 96 × 125	96 × 96 × 125	72 × 72 × 110	48 × 48 × 100
Power Voltage		110 / 220 V a.c (50 / 60 ㎐)
Power Consumption		3 VA
Input		Input(Sensor type) selection by the configuration suffix code. a) Thermo couple : K, J, R b) R.T.D : KPt100 Ω(KS), Pt100 Ω(IEC 751) c)DC current : 4 to 20 mA d) DC voltage : 1 to 5 V DCnt
Control Output		Relay contact : 250 V AC 3 A (Resistive load), SSR: 12 V DC (Constant voltage pulse) [Load resistance min. 800 Ω], Current: 4 - 20 mA DC [Load resistance max. 600 Ω)
Control Method		Proportional or ON/OFF control
Alarm Output		-	Relay contact : 250 V a.c 3 A	-
Setting Method		By B.C.D S/W
Permissible input resistance		Thermocouple : Max. 250 Ω, R.T.D : Max. 10 Ω
Indication range		Setting temperature range
Display		L.E.D Display
Setting and display accuracy		Set Value : ±1.0 % of F.S, Display : ±0.5 % of F.S
Control sensitivity		Approx 0.2 % F.S (Fixed)
Proportional Cycle		Relay contact : 25 ~ 30 sec SSR : 2 ~ 4 sec
Reset Range		Max. ± 1.5 % of Range
Dielectric Strength		2,000 V AC 50/60 ㎐ for 1 minute (Primary terminal-secondary terminal)
Vibration	Resistance	2 - 55 ㎐, X · Y · Z each position for 10 minutes
	Durability	10 - 55 ㎐, X · Y · Z each position for 2 hours
Shock	Resistance	100 ㎨ 6 positions, each 3 times
	Durability	300 ㎨ 6 positions, each 3 times
Life	Mechanical	Min. 10 million times (Relay type)
	Electrical	Min. 0.3 million times (Relay type)
Ambient temperature and humidity		0 ~ 50 ˚C(32 ~ 122˚F) · 35 ~ 85 % R.H. (Without freeze)
