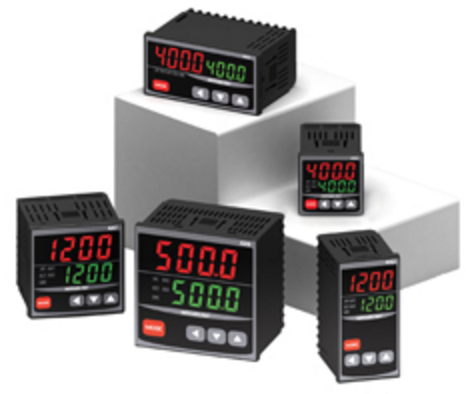

| Appearance |
AX4 |
AX3 |
AX7 |
AX2 |
AX9 |
|
|
|
|
|
|
| 48 X 48 X 63 |
96 X 48 X 63 |
72 X 72 X 63 |
48 X 96 X 63 |
96 X 96 X 63 |
| Input type |
Multi input(Thermocouple : K, J, R, T, IEC 584-1), (RTD : Pt100 Ω, IEC751) |
| Sampling cycle |
100 ms |
| Input impedance |
max 1 ㏁ |
| Albwable input wiring resistance |
10 V DC |
| Display accuracy |
Thermocouple
K,J,T |
± 0.3 % of F.S ±1 digit (RJC error ±0.8%) ℃ |
Thermocouple
R |
±1.0% of F.S ±1 digit in the 0 ~ 600 ℃ range |
± 2.0℃ in the range of 0~600℃, ± 0.8℃ outside of the range
|
| ±0.3 % F.S ±1 digit in the 600 ~ 1700 ℃ range |
| Pt100 |
±0.3 % of F.S ±1 digit℃ |
| Display type |
7 Segment LED (PV : red, SV : green) |
| Font size |
PV |
13.0 X 6.5 |
15.9 X 7.6 |
14.5 X 7.0 |
14.5 X 7.0 |
22.5 X 11.2 |
| SV |
9.2 X 5.2 |
12.0 X 6.0 |
9.4 X 4.7 |
10.8 X 5.2 |
18.7 X 9.3 |
| Input resolving power |
- • Thermocouple : 0.1℃ (K2, J, T), 0.5℃ (K1), 0.3℃ / 1℉ (R)
- • RTD : 0.03℃, (0.1 ℉)
|
| Insulation resistance |
min 20㏁, 500 V DC 1 minute (primary terminal - secondary terminal) |
| Dielectric strength |
2,300 V AC, 50/60 ㎐, for 1min (primary terminal - secondary terminal) |
| Control method |
PID control by Auto-tuning, ON/OFF control |
| Manual reset |
Users set with in the range 0.0% - 100.0% |
| Control output operation |
Reverse operation / Direct operation selectable by the parameter setting |
| Control output |
- • Relay output ※Selectable by the prameter setting 1a contact,
3 A 240 V AC, 3 A 30 V DC(resistive load)
|
- • Voltage pluse output for running SSR [time sharing proportional control (CYC)]
- • Voltage plus output for running SSR [phase control(PHR)] 0/12 V DC, pulse voltage
(resistive load minimum 600Ω)
|
| 4 - 20 ㎃ DC(resistive load max. 600Ω) |
| Power supply voltage |
100 - 240 V AC 50 / 60 ㎐ |
| Voltage fluctuation |
±10 % of the power supply voltage |
| Power consumption |
5.5 VA max |
| Ambient temperature |
-5 ~ 50℃ |
| Ambient humidity |
35 ~ 85% RH (without condensation) |
| Vibration resistance |
10 -55 ㎐, 0.75 mm, each to direction, X, Y and Z for 2 hours |
| Shock resistance |
300 ㎨ to direction 6 each 3 times |
| Weight |
180 g |
320 g |
300 g |
320 g |
400g |
