นิทโก้พลัส : UX100

- PID auto tuning
- GroupPID3 types
- Scaling and input compensation function
- Heating/Cooling control
- Communication (RS485)

Suffix code

Model	Code		Information

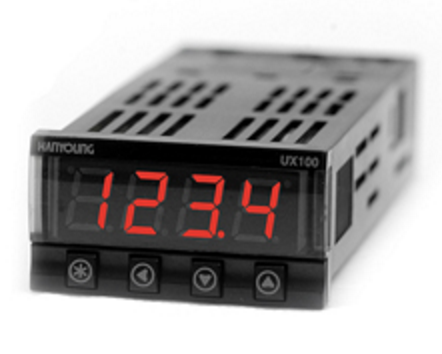

UX100 -			Multi input/output temperature controller. 48(W) × 24(H) mm
Control type	0		Universal type
Control type	1		Heating/Cooling control (but heating side cannot use relay)
Option		0	None
Option		1	Communication function (RS485)

Specification

Model

UX100

W × H × D (mm)

48 × 24 × 100

Function

Input

Multi inpu a) T.C : K, J, E, T, R, B, S, L, N, U, W, PLII, b) R.T.D : Pt100(KS/IEC), KPt100(KS)

c) DC Voltage input : 1 to 5 V, -10 to 20 mV, 0 to 100 mV,

d) DC Current input : 4 to 20 mA(Connect a 250 Ωresistor to the input terminals)

Sampling cycle

250 ms

Input display resolution

Below decimal point of Input signal and Measuring range

Input impedance

T.C and mV input : Min, 1 ㏁ d.c V : 1 ㏁

Source tolerable resistance

Thermocouple : Max. 250 Ω, Voltage : Max. 2 ㏀

Lead wire tolerable resistance

R.T.D : Max. 150 Ω / wire

Input tolerable voltage

± 10 V (T.C, R.T.D, Voltage : mV d.c), ± 20 V (Voltage : V d.c)

Noise removal rate

NMRR(Nomal mode) : Min. 40dB CMRR(Common mode) : Min. 120dB (50/60 ㎐ ±1 %)

Standard

T.C, R.T.D : KS, IEC, DIN

Scaling

According to setting Max. value(SH), Min. value(SL) of measuring range, scaling is available (-1999 ~ 9999)

Standard junction temp.
compensation tolerance

±1.5 ˚C (15 ~ 35˚C), ±2.0 ˚C (0 ~ 50 ˚C)

Accuracy

±0.5 % (Full scale)
