Product Detail :
- Cooling control, heating control selection
- Alarm output 2 contacts
- For ON/OFF control only
- 0.1℃ Display
- Set the time of delay output
Suffix code
| Model | Code | Information |
| RS6- |  |

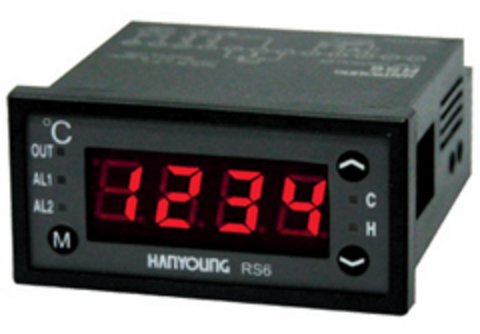

Digital temperature controller |
| Input | K | K thermocouple |
| P | RTD Pt100 Ω (IEC) | |
| N | Company exclusive NTC |
Specification
| Model | RS6 |
| W × H × D (mm) | 72 × 36 × 76 |
| Power Voltage | 12 V a.c 60 ㎐ |
| Power Consumption | 5 VA max |
| Input Sensor | Pt100 Ω(IEC751), NTC(Company exclusive) |
| Display accuracy | ±1 % of F.S ±1 Digit |
| Output (Relay contact) |
Control output : From C contact, 250 V AC 3A(Resistive load), Alarm output : From A x 2, 250 V AC 3A (Resistive load) |
| Control mode | Only for ON/OFF contro |
| Setting method | DIgital method by up and Down key |
| Other function | Reverse action (heating) or direct action (cooling) selection |
| Ambient temperature | 0 ~ 50 ˚C |
| Ambient humidity | 35 ~ 85 % RH (without dew condensation) |
