Product Detail :
- Cooling control and heating control selection
- Alarm output and timer output selection
- ON / OFF and proportional control selection
- 0.1 ℃ / 1 ℃ selection
- Delay output time setting
Suffix code
| Model | Code | Information | |||
| BR6- |  |
|
|
|

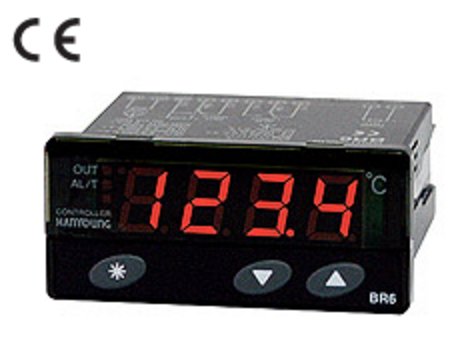

Digital temperature controller 72(W) x 35(H) |
| Control type | F | ON/OFF control | |||
| P | Proportional control | ||||
| Input | N | HANYOUNG NUX exclusive sensor (TH-540D) *Thermistor | |||
| Control output | M | Relay | |||
| S | S.S.R (voltage pulse output 5 V d.c) | ||||
| Power Supply Voltage | P3 | 10 - 24 V d.c / a.c, 50 - 60 ㎐ | |||
| P4 | 100 - 240 V a.c, 50 - 60 ㎐ | ||||
Specification
| Model | BR6 | |
| W × H × D (mm) | 77 X 35 X 70.5 | |
| Power Voltage | 100 - 240 V AC 50 - 60 Hz, 10 - 24 V DC/AC 50 - 60 Hz | |
| Power Consumption | 5 VA max( 220 V AC 60 Hz) | |
| Input | Thermocouple : K, R.T.D : Pt100 Ω(IEC751) | |
| Display accuracy | ±1 % of F.S ±1 digit | |
| Control&Auxiliary output | Relay | Form C contact, 250 V AC 5 A (Resistive load) |
| S.S.R | Approx 5 V DC 500 Ω min (Load resistance) | |
| Control mode | ON / OFF, Proportion | |
| Setting method | Digital method by up and Down key | |
| Other function | Defrosting Timer, Alarm function, Heating / cooling control | |
| Ambient temperature | 0 - 50 ˚C | |
| Ambient humidity | Max. 85 % R.H. | |
