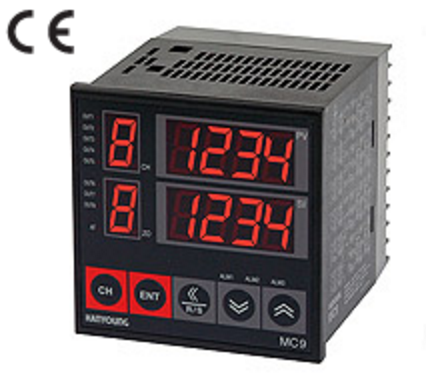

Product Detail :
- Digital Input (DI)
- Control 4/8 channels
- Communication (RS485/422)
- Heating/cooling control (4 channels)
Suffix code
| Model |
Code |
Information
|
| MC9-4 |
 |
|
|
|
|
|
4 channels digital temperature controller dimension : 96(W) × 96(H) mm |
| Control type |
D |
|
|
|
|
|
Universal type |
Direct action ( cooling action) |
| R |
|
|
|
|
|
Reverse action (heating action) |
| W |
|
|
|
|
|
Heating/Cooling control |
Heating / Cooling (synchronous output) |
| Input type |
|
|
|
|
|
Refre to the input type code |
Heating output
(output 1 - 4) |
M |
|
|
|
Relay contact output |
| S |
|
|
|
SSR operation output |
| T |
|
|
|
Triac operation output |
| 4 |
|
|
|
4 - 20 mA DC (Current output) |
| 5 |
|
|
|
0 - 20 mA DC (Current output) |
Cooling output
(output 5~8)
(Only for MC9 - 4W mode) |
N |
|
|
NONE (Only control type D&R) |
| M |
|
|
Relay contact output |
| S |
|
|
SSR operation output |
| T |
|
|
Triac operation output |
| 4 |
|
|
4 - 20 mA D.C (Current output) |
| 5 |
|
|
0 - 20 mA DC (Current output) |
| Optional |
N |
|
NONE |
| 1 |
|
AL2, AL3 |
| 2 |
|
AL2, AL3 + RS232 + contact input |
| 3 |
|
AL2, AL3 + RS485 / 422 + contact input |
| 4 |
|
AL2, AL3 + heater break |
| Power Supply Voltage |
2 |
100 - 240 V AC 50 / 60 ㎐ |
| Model |
Code |
Information |
| MC9-8 |
|
|
|
|
|
|
8 channel digital temperature controller. Dimension :
96(W) × 96(H) X 100(D)mm |
| Control type |
D |
|
|
|
|
|
Direct action ( cooling action) |
| R |
|
|
|
|
|
Reverse action (heating action) |
| Input type |
|
|
|
|
|
Refre to "code" of range and input code chart |
| Output 1 ~ 4 |
M |
|
|
|
Relay contact output |
| S |
|
|
|
SSR operation output |
| T |
|
|
|
Triac operation output |
| 4 |
|
|
|
4 - 20 mA DC (Current output) |
| 5 |
|
|
|
0 - 20 mA DC (Current output) |
| Output 5 ~ 8 |
N |
|
|
NONE (when selected, input channels 5 ~ 8 are for indication) |
| M |
|
|
Relay contact output |
| S |
|
|
SSR operation output |
| T |
|
|
Triac operation output |
| 4 |
|
|
4 - 20 mA DC (Current output) |
| 5 |
|
|
0 - 20 mA DC (Current output) |
| Optional |
N |
|
NONE |
| 2 |
|
RS232 + contact input |
| 3 |
|
RS485 / 422 + contact input |
| 4 |
|
Heater break |
| Power Supply Voltage |
2 |
100 - 240 V AC 50 / 60 ㎐ |
Specification
| Model |
MC9 |
| W × H × D (mm) |
96 × 96 × 100 |
| Function |
| · Multi channels PID control device |
| · Various alarm functions (15 types) |
| · multi memory function (max 8 × 8 units) |
| · 8/4 channels control device |
| · DI contact input function |
| · Heating/Cooling function (4 channels are possibe only) |
|
| Power Voltage |
110 - 220 V a.c (50 - 60 ㎐) |
| Power consumption |
100 V a.c (below 14 VA) / 240 V a.c (below 20 VA) |
| Input |
| Input(Sensor type) selection by the configuration suffix code. |
| a) T.C : K, J, E, T, R, B, S, L, N, U, W, PLII, b) R.T.D : Pt100 Ω(KS/IEC), KPt100 Ω(KS) |
| c) DC Voltage input : 0 to 5 V, 1 to 5 V,0 to 10 V, d) DC Current input : 4 to 20 mA |
| (Connect a 250 Ωresistor to the input terminals) |
|
| Output |
Type (Relay Output, Voltage Pulse Output, Triac Output, 4 - 20 ㎃ Output, 0 - 20 ㎃ Output) |
| Alarm |
1a Contact Type / 250 V AC, 1 A (for resistive load) / Life time: above 300,000 times ON/OFF |
| Communication |
| EIA RS485 / RS232C, Max. connecting units : 31 units |
| (for RS485, Address can be set from 1 to 99) |
| Communication method: 4-wire half duplex/ 2-wire half duplex, |
| Communication Protocol: PC-LINK |
|
| Contact input |
From Below 2㏀ ON, From Above 15 ㏀, OFF |
| Operating Environment |
| Temperature: 0 ~ 50 ℃ (32 ~ 122 ℉), Humidity: 45 ~ 85 % R.H. (but, without condensation) |
| Magnetic field : Below 400 AT/m Without poisonous gas and without full of dust |
|
