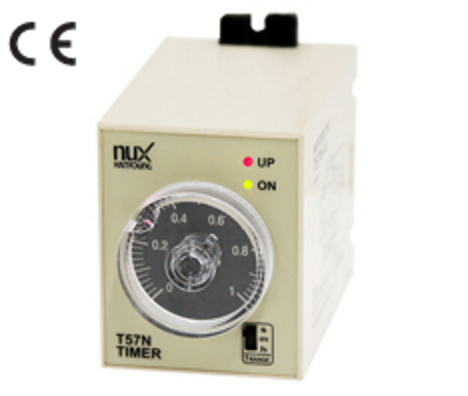

E-Catalog > Counter / Timer (Timer) > T57N
Product Detail :
- Simple set up method
- Free power (24-240 V AC/DC (common))
- Repeated operation of 0.3% of maximum range
- Selection of time unit (3 kinds) due to front side of deep switch
Suffix code
| Model | Suffix code | Information | |||
| Dimension |  - |
|
|
|
Analog Timer |
| T38N | T38N timer (40 X 50 ㎜) | ||||
| T48N | T48N timer (48 X 48 ㎜) | ||||
| T57N | T57N timer (58 X 84 ㎜) | ||||
| TF62N | TF62N twin timer (58 X 84 ㎜) | ||||
| TF62D | TF62D dual timer (58 X 84 ㎜) | ||||
| Installation type | E | Exposure type (Select with T48N panel type) | |||
| P | Panel type (T38N panel adapter sold separately) | ||||
| Range (Deep switch selection) |
01 | 1 sec / 1 min / 1 hour | |||
| 03 | 3 sec / 3 min / 3 hour | ||||
| 06 | 6 sec / 6 min / 6 hour | ||||
| 10 | 10 sec / 10 min / 10 hour | ||||
| 30 | 30 sec / 30 min / 30 hour | ||||
| 60 | 60 sec / 60 min / 60 hour | ||||
| 12H | 12 hour, 24 hour, 48 hour (※ But exclude the model TF62N and TF62D) | ||||
| Control output | A | Time limit : 1c contact, Constantaneous : 1a contact | |||
| B | Time limit : 1c contact, moment : 1c contact | ||||
| C | Time limit : 2 x 1c | ||||
| D | TF62N twin timer fixing code | ||||
| F | TF62D dual timer fixing code | ||||
| Power supply voltage | 24 - 240 V AC / DC 50 - 60 ㎐ (dual usage) | ||||
Specification
| Model | Exposure type | T57NE |
| Panel type | T57NP | |
| Function | POWER ON DELAY TIMER | |
| Power supply | 24 - 240 V a.c 50 / 60Hz, 24 - 240 V d.c ( ±10 %) | |
| Allowable voltage variation | ± 10 % of Power supply voltage | |
| Power Consumption | Less than 4.5 VA (at 240 V a.c 60 Hz), Less than 1.5 W (at 24 V d.c) | |
| Return time | Less than 100 ms | |
| maximum time |
01 | 0.01 ~ 1 s / 0.01 ~ 1 m / 0.01 ~ 1 h |
| 03 | 0.01 ~ 3 s / 0.01 ~ 3 m / 0.01 ~ 3 h | |
| 06 | 0.01 ~ 6 s / 0.01 ~ 6 m / 0.01 ~ 6 h | |
| 10 | 0.01 ~ 10 s / 0.01 ~ 10 m / 0.01 ~ 10 h | |
| 30 | 0.01 ~ 30 s / 0.01 ~ 30 m / 0.01 ~ 30 h | |
| 60 | 0.01 ~ 60 s / 0.01 ~ 60 m / 0.01 ~ 60 h | |
| 12H | 0.01 ~ 12 h / 0.01 ~ 24 h / 0.01~ 48 h (For 24 hours 'x2' and for 48 hours 'x4' ) | |
| Time error | Repeat error | Less than 0.3 % (ratio against Max. scale) |
| Setting error | Less than 5 % (ratio against Max. scale) | |
| Control output | Output mode | POWER ON DELAY |
| Contact | A type(On - delay 1c + Constant contact 1a) / B type(On - delay 1c + Constant contact 1c) / C type(On - delay 2c) |
|
| Contact capacity | 250 V a.c 3 A Resistive load | |
| Life span of relay | Mechanical : More than 10 million times / Electrical : More than 100,000 times | |
| Dielectric strength | 2000 V a.c 50 / 60 Hz for 1 minute | |
| Noise Immunity | ±2 kV (Between unit's power terminals), square wave by noise simulator (pulse width : 1 ㎲) | |
| Insulation resistance | More than 100 ㏁ (Based on 500 V DC mega standard) | |
| Vibration(Durability) | 10 - 55 ㎐ (cycle :1 minute), Double amplitude 0.5 ㎜ X·Y·Z each direction for 2h. | |
| Shock(Durability) | 300 m/s² (30 G) X Y Z each direction 3 times | |
| Ambient temperature | - 10 ~ 55 °C Without freeze | |
| Storage temperature | - 25 ~ 65 °C Without freeze | |
| Ambient humidity | 30 ~ 85 % R.H. | |
| Certification | CE certified (exception : TF62D) | |
