Product Information :

Name :

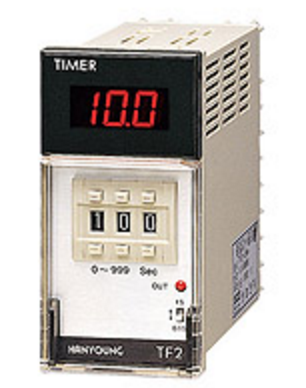

TF2
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Counter / Timer (Timer)
Brand :
Hanyoung
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :

- Relay or transistor output
- Free power (100-240V AC or 24-60V DC)
- 10 decimal digits or 60 hexadecimal digits
- Selection of range due to the front side of deep switch (2kinds)


Suffix code

Model Suffix code Description
TF2
 Digital timer 48(W) X 96(H) ㎜
Displayable digits 3
 Display 3 digits (999)
Power supply voltage A
 100 - 240 V AC 50 - 60 ㎐
Power backup memory function N
 None

Specification

MODEL TF2
Appearance (mm) 48(W) × 96(H) × 112(D)
Terminal type Plug In
Control method Up
Display method LED Height 7 Segment LED : 8 mm
Display digit 3 dights
Time setting range 99.9sec / 999sec
Counting input Reset, inhibit
Input signal External reset, inhibit : Min. input signal width 0.02 sec.
Power reset : Min. power opening time 0.5 sec.
Power voltage 100 - 240 V AC (50/60 Hz)
Power consumption Approx. 4.8 VA (220 V AC 60 Hz)
Control output Contact output : 1 c 250 V AC 3 A (resistance load)
Non-Contact output : 30 V DC 100 mA Max.
Insulation resistance Min. 100MΩ (At 500VDC) Part of conduction terminal and exposured non-electrify metal part
Dielectric strength 2,000 V AC 50/60 Hz for 1 minute (Between terminal)
Vibration Malfunction 10 - 55 Hz, X·Y·Z each position for 10 minutes
Durability 10 - 55 Hz, 0.76㎜, X·Y·Z each position for 2 hours
Shock Malfunction 100 ㎨ 6 positions, each 3 times
Durability 300 ㎨ 6 positions, each 3 times
Life Malfunction Min. 10 million operations (Relay type)
Electrial Min. 100,000 million operation (Relay type)
Ambient temperature & humidity 0 ~ 50 ℃·30 ~ 85 %R.H.
