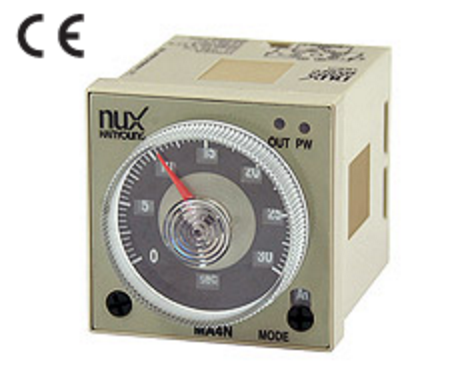

E-Catalog > Counter / Timer (Timer) > MA4N
Product Detail :
- Time unit 4 kinds
- Multi range 4 kinds
- Reset, start, prohibited input
- Output operation mode 6 kinds
Suffix code
| Model | Code | Information |
| MA4N- |  |
Analog multi timer (48 X 48 ㎜) |
| Device selection | A | 2c (time limit) ※11 pin type |
| B | 2c (time limit+ constantaneous) ※11pin type. | |
| C | 2c (time limit), 2c (time limit+ constantaneous) ※ processed by mode selection (8pin type) | |
| Power supply voltage | 24 - 240 V AC/DC (50 - 60 ㎐) (dual usage) | |
Specification
| Model | MA4N-A | MA4N-B | MA4N-C | |
| Power Supply voltage | 24 - 240 V a.c / d.c 50 - 60 Hz | |||
| Voltage regulation | ±10 % from supply voltage | |||
| Power consumption | 5.3 VA (240 V a.c), 2.5 W (240 V d.c) | |||
| Resetting time | Max. 0.1 sec | |||
| Min Signal length |
START Input | Min. 20 ms | - | |
| INHIBIT Input | ||||
| RESET Input | ||||
| Input condition |
START Input | Non voltage Input Impedance in a short circuit : Max. 2 kΩ Residual voltage in a short circuit : Max. 0.7 V d.c Impedance in open : Min. 100 kΩ |
- | |
| INHIBIT Input | ||||
| RESET Input | ||||
| Output | Time Limit 2c | Time Limit 1c Instautaneous 1c |
Time Limit 2c Time Limit 1c Instautaneous 1c |
|
| N.O : 10 A 125 V a.c, 5 A 250 V a.c, 5 A 30 V d.c N.C : 3 A 125 V a.c, 2 A 250 V a.c, 1 A 30 V d.c |
||||
| Setting error | Max. ± 5 % ± 0.05 sec - | |||
| Repeat error | Max. ± 0.3 % | |||
| Temperature error | Max. ± 2 % | |||
| Insulation resistance | Min. 100 MΩ (Base on 500 V d.c) | |||
| Dielectric strength | 2000 V a.c 50 / 60 Hz for 1 min. | |||
| Impulse voltage | ± 2000 V Max. | |||
| Vibration | Mechanical Resistance |
10 - 55 Hz double amplitude 0.75 mm | ||
| Malfunction durability |
10 - 55 Hz double amplitude 0.5 mm | |||
| Shock | Mechanical Resistance |
300 m/s² (Approx. 30 G) | ||
| Malfunction durability |
100 m/s² (Approx. 10 G) | |||
| Life | Mechanical | Over 10 million operations (Open & Short frequency : 180 / min) | ||
| Electrical | Over 100,000 (250 V a.c 3 A load resistance) | |||
| Terminal type | Socket type 11 pin | Socket type 8 pin | ||
| Ambient temperature | -10 ~ 55 ℃ (With no condensation) | |||
| Conservation temperature | -20 ~ 65 ℃ (With no condensation) | |||
| Ambient humidity | 35 ~ 85 %R.H. | |||
| Weight | About 100g (Including fixing bracket) | |||
