Product Detail :

- Relay or transistor output
- Free power (100-240V AC or 24-60V DC)
- 10 decimal digits or 60 hexadecimal digits
- Selection of range due to front side of deep switch (2 kinds)

Suffix code

Model	Code				Information

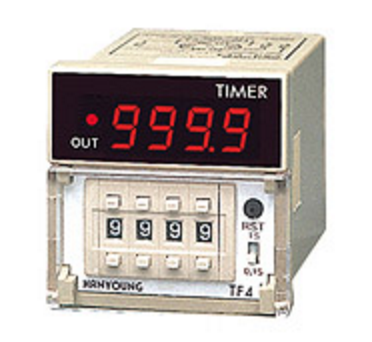

TF4-					Digital timer 48(W) X 48(H)
Time Specification	A				999.9 sec / 9999 sec
	B				9 min 59.9 sec / 59 min 59 sec
	C				999.9 min / 59 hour 59 min
Display Method		U			Up display
Display Method		D			Down display
Power supply voltage			A		100 - 240 V AC 50 - 60 ㎐
Power supply voltage			D		24 - 60 V DC
Control output				R	Relay
Control output				T	Open Collector

Specification

MODEL		TF4-A	TF4-B	TF4-C
W×H×D(mm)		48(W) × 48(H) × 95.6(D)
Terminal type		8 pin Plug
Control method		Up, Down
Display method		LED Height 7 Segment LED : 8 mm
Display digit		4 dights
Time setting range		999.9 sec / 9999 sec	9 m 59.9 sec / 59 m 59 sec	59 hours 59 minute
Counting input		Reset, inhibit
Input signal		External reset, inhibit : Min. input signal width 0.02 sec. Power reset : Min. power opening time 0.5 sec.
Power voltage		100 - 240 V AC (50/60 Hz)
Power consumption		Approx. 4.8 VA (220 V AC 60 Hz)
Control output		Contact output : 1c 250 V AC 3 A (resistance load)Non-Contact output: 30 V DC 100 mA Max.
Insulation resistance		Min.100 ㏁ (At 500 V DC) Part of conduction terminal and exposured non-electrified metal part
Dielectric strength		2,000VAC 50/60Hz for 1 minute (Between terminal)
Vibration	Resistance	10 - 55 Hz, X·Y·Z each position for 10 minutes
	Durability	10 - 55 Hz, 0.76㎜, X·Y·Z each position for 2 hours
Shock	Resistance	100 ㎨ 6 positions, each 3 times
	Durability	300 ㎨ 6 positions, each 3 times
Life	Malfunction	Min. 10 million operations (Relay type)
	Electrial	Min. 100,000 million operation (Relay type)
Ambient temperature & humidity		0 ~ 50 ℃·30 ~ 85 %R.H.
