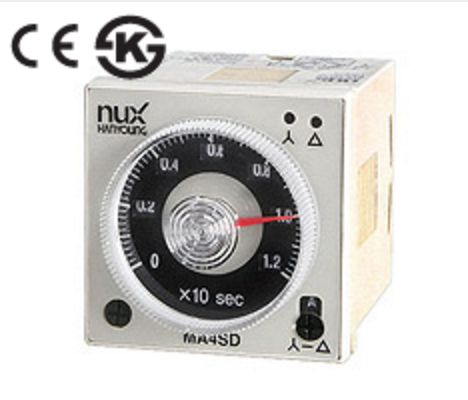

E-Catalog > Counter / Timer (Timer) > MA4SD
Product Detail :
- Star-delta timer
- 8 Pins plug type
- High capacity MOTOR start timer
- Instantaneous contact output, start contact output, DELTA contact output.
- Various power supply voltage (100 – 240 V AC 50/60 Hz, 24 – 240 V DC Dual usage)
Suffix code
| Model | Code | Information |
| MA4 |  |
Analog multi timer (STAR-DELTA Timer), 48 (W) x 48 (H)mm |
| Control output | SD | Y-△ output, △ output |
| SDI | Instantaneous output, Y-△ output, △ output |
Specification
| Model | MA4SD | MA4SDI | |
| Power supply voltage | 100 - 240 V a.c 50/60 Hz, 24 – 240 V d.c | ||
| Allowable voltage | Power supply voltage ±10 % | ||
| Power consumption | Approx. 3.8 VA (100 - 240 V a.c 60 ㎐), Approx. 1.9 W (24 – 240 V d.c) | ||
| Resetting time | 100 ms max | ||
| Operating time range | 1 ~ 300 sec | ||
| Y-△ Operating time range | Repeated error : ±0.3 % max, Setting error : ±5 % max, Voltage error : ±0.5 % max, Temperature tolerance : ±2 % max (Percentage of full scale) |
||
| △ Conversion time error | ±25 % max | ||
| Control output |
Output mode | Power ON Start | |
| Contact composition | Y-△ Contact : 1 a, △ Contact : 1 a | Y-△ Contact : 1a, △ Contact : 1 a, Instantaneous contact : 1 a |
|
| Contact capacity | 250 V a.c 5 A resistive load | ||
| Relay Life span | Mechanical : 5 million times min, Electrical : 100 thousand times min (250 V a.c 5 A resistive load) |
||
| Insulation resistance | 100 ㏁ min (at 500 V d.c Between current-carrying teminals and exposed noncurrent -carrying metal parts.) |
||
| Dielectric strength | 2000 V a.c 50/60 ㎐ 2 minute (Between current-carrying terminal and exposed noncurrent-carrying metal parts.) |
||
| Noise immunity | ±2 kV (Between power terminal, pulse width ±1 ㎲, square wave noise by noise simulator) | ||
| Vibration resistance | 10 - 55 ㎐ (For 1 min), Double amplitude 0.75mm, X,Y,Z each direction for 1 hour | ||
| Shock resistance | 300 ㎨ (30G) X, Y, Z each direction for 3 times | ||
| Ambient temperature | -10 ~ 55 ℃ (icing or dew condensation not allowed) | ||
| Storage temperature | -25 ~ 65 ℃ (icing or dew condensation not allowed) | ||
| Ambient humidity | 35 ~ 85 % R.H. | ||
| Weight | Approx. 95g (Including fixing bracket) | ||
