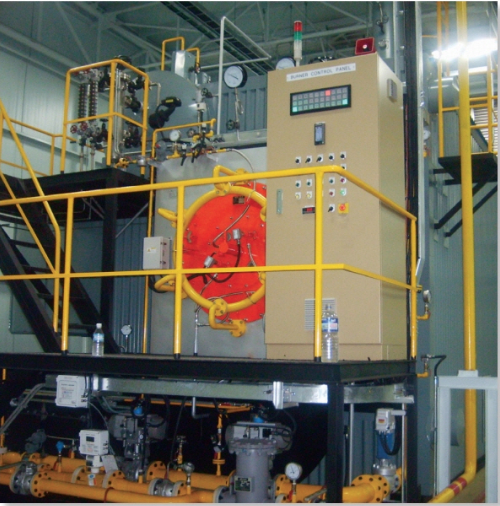

นิทโก้พลัส : Waste Tube Boiler

Product Detail :

■ DP - Gas, Diesel, Heavy Oil Type

Item		Unit	DP 2PG	DP 3PG	DP 4GP	DP 5PG	DP 6PG	DP 7PG	DP 8PG	DP 10PG
Boiler Body	Rated Evaporation	kg/h	2,000	3,000	4,000	5,000	6,000	7,000	8,000	10,000
	Heat Output	MWh	1.50	2.25	2.99	3.74	4.49	5.24	5.99	7.48
	Design Pressure	Gcal/h	1.0 (1.2, 1.4, 1.6, Option)
	Effciency	MPa	90
	Heating Surface	%	47	66	84	112	134	152	174	181
	Weight	m²	5.3	6.4	7.5	8.2	9.1	10.2	11.5	15
	Contained water	Ton	2.2	2.8	3.7	3.9	4.3	4.5	5.4	6.4
Fuel Consumption	Heavy Oil (Bunker C Oil)		146.7	220.1	293.4	366.8	440.1	513.5	586.8	733.6
	Diesel		138.9	208.3	277.8	347.2	416.6	486.1	555.5	694.4
	LNG		143.0	214.6	286.1	357.6	429.1	500.7	572.2	715.2
	LPG+AIR	N㎥/h	98.7	148.0	197.3	246.6	296.0	345.3	394.6	493.3
	Propane (LPG)	N㎥/h	63.9	95.8	127.7	159.6	191.6	223.5	255.4	319.3
	Propane (LPG)	kg/h	129.0	193.5	258.0	322.5	387.0	451.5	518.0	644.9
Power Consumption	Feed Water Pump	kWxQ'ty	3 x 2	4 x 2	4 x 2	4 x 2	5.5 x 2	5.5 x 2	7.5 x 2	7.5 x 2
	Fan	kW	5.5	7.5	11	15	15	18.5	22	30
	Oil Pump	kW	0.75	1.5	1.5	1.5	2.2	2.2	2.2	2.2
Connection Bore Diameter	Feed Water Valve	A	40	40	40	40	50	50	50	50
	Drain Valve	A	40	40	40	40	50	50	50	50
	Main Steam Valve	A	80	80	100	125	125	150	150	200
Installation Summary	Exhaust Port	mmØ	350	440	500	560	620	670	710	800
	Length	mm	2,030	2,300	2,430	2,570	2,660	2,710	2,775	2,830
	Width	mm	3,650	3,700	3,970	4,275	4,765	4,695	5,245	5,680
	Height	mm	2,600	2,900	2,850	3,000	3,150	3,350	3,360	3,444

■ DP - Gas, Diesel, Heavy Oil Type

Item		Unit	DP 15PG	DP 20PG	DP 25PG	DP 30PG	DP 35PG	DP 40PG	DP 45PG	DP 50PG	DP 60PG
Boiler Body	Rated Evaporation	kg/h	15,000	20,000	25,000	30,000	35,000	40,000	45,000	50,000	60,000
	Heat Output	MWh	11.23	14.97	18.71	22.45	26.20	29.94	33.68	37.42	44.91
	Design Pressure	Gcal/h	1.0 (1.2, 1.4, 1.6, Option)
	Effciency	MPa	90
	Heating Surface	%	263	356	415	460	520	556	590	625	720
	Weight	m²	21	23.5	27	32	35.1	37	42	43.5	45.9
	Contained Water	Ton	9.5	10.7	11.9	14.4	16.2	18.2	19	20.9	22
Fuel Consumption	Heavy Oil (Bunker C Oil)		1100.3	1467.1	1833.9	2200.7	2567.5	2934.2	3301.0	3667.8	4401.4
	Diesel		1041.6	1388.8	1736.0	2083.2	2430.4	2777.6	3124.8	3472.0	4166.3
	LNG		1072.8	1430.4	1788.1	2145.7	2503.3	2860.9	3218.5	3576.1	4291.3
	LPG+AIR	N㎥/h	739.9	986.5	1233.1	1479.8	1726.4	1973.0	2219.7	2466.3	2959.5
	Propane (LPG)	N㎥/h	478.9	638.6	798.2	957.9	1117.5	1277.2	1436.8	1596.5	1915.8
	Propane (LPG)	kg/h	967.4	1289.9	1612.4	1934.8	2257.3	2579.8	2902.3	3224.7	3869.7
Power Consumption	Feed Water Pump	kWxQ'ty	15 x 2	15 x 2	18.5 x 2	22 x 2	22 x 2	22 x 2	30 x 2	30 x 2	37 x 2
	Fan	kW	45	55	75	90	110	132	150	200	250
	Oil Pump	kW	2.2	2.2	2.2	3.7	3.7	3.7	3.7	3.7	3.7
Connection Bore Diameter	Feed Water Valve	A	50	65	80	80	80	100	100	100	100
	Drain Valve	A	50	50	50	50	50	50	50	50	50
	Main Steam Valve	A	200	250	250	300	350	400	400	400	450
Installation Summary	Exhaust Port	mmØ	980	1,130	1,260	1,450	1,540	1,650	1,750	1,930	2,050
	Length	mm	3,200	3,220	3,950	3,950	4,600	4,850	5,000	5,200	5,350
	Width	mm	6,472	6,610	7,010	7,859	6,800	6,800	7,200	7,400	8,350
	Height	mm	3,880	4,104	4,644	4,889	5,400	5,800	6,000	6,400	6,600
