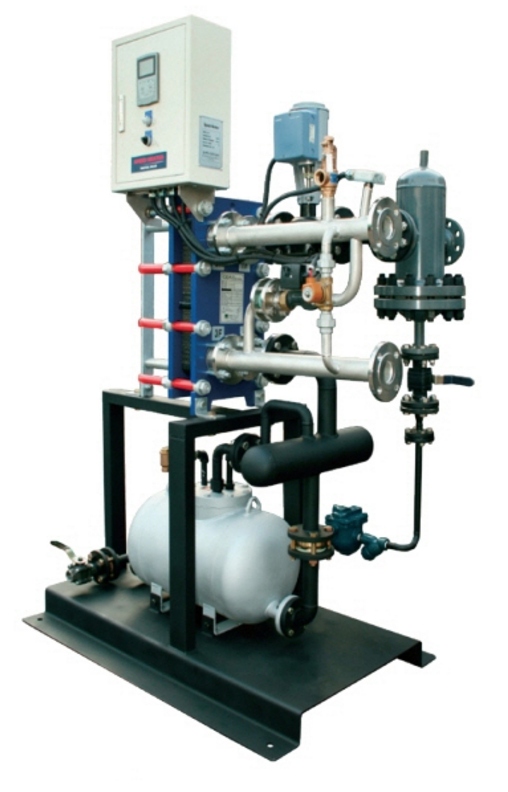

นิทโก้พลัส : Speed Heater

Product Detail :

■ SH-W Type (Hot Water Type)

Item		Unit	SH 100W	SH 200W	SH 300W	SH 400W	SH 500W	SH 600W
Boiler Body	Rated Heating Value	kcal/h	100000	200000	300000	400000	500000	600000
	Rated Heating Value	MWh	0.12	0.23	0.35	0.47	0.58	0.70
	Steam Pressure	MPa	Standard : 0.2MPa
	Water Pressure	MPa	Standard : 1.0MPa
	Material		STS316
	Heating Surface	m²	0.36	0.72	0.96	1.32	1.56	1.80
	Weight	kg	179	397	414	416	418	423
Operating control			SIEMENS Full Automatic System (Automatic Control, Automatic valve, Temperature Sensor)
Hot Water Condition	Amount of Hot Water	LPM	30.7	61.2	91.8	122.5	153.2	183.7
	Amount of Hot Water	LPM	1840	3670	5510	7350	9190	11020
	Temperature Condition	℃	5℃ - 60℃
	Amount of Steam	kg/h	194	387	581	774	968	1161
Installation Summary	Automatic Valve Standard	0.2MPa	25	40	40	50	50	65
	Hot Water(A)	Inlet&Outlet	50	50	50	50	50	50
	Steam Trap(A)	Inlet&Outlet	20	20	32	32	32	32
	Width(W)	mm	600	600	600	600	900	900
	Length(L)	mm	1220	1220	1220	1220	1600	1600
	Height(H)	mm	1710	1710	1710	1710	2155	2155

■ SH-W Type (Hot Water Type)

항 목		Unit	SH 700W	SH 800W	SH 1000W	SH 1500W	SH 2000W
Boiler Body	Rated Heating Value	kcal/h	700000	800000	1000000	1500000	2000000
	Rated Heating Value	MWh	0.81	0.93	1.16	1.74	2.33
	Steam Pressure	MPa	Standard : 0.2MPa
	Water Pressure	MPa	Standard : 1.0MPa
	Material		STS316
	Heating Surface	m²	2.60	3.12	4.16	6.24	6.50
	Weight	kg	429	451	526	833	883
Operating control			SIEMENS Full Automatic System (Automatic Control, Automatic valve, Temperature Sensor)
Hot Water Condition	Amount of Hot Water	LPM	214.3	245.0	306.2	459.3	612.3
	Amount of Hot Water	LPM	12860	14700	18370	27560	36740
	Temperature Condition	℃	5℃ - 60℃
	Amount of Steam	kg/h	1355	1548	1936	2903	3871
IInstallation Summary	Automatic Valve Standard	0.2MPa	65	80	80	100	100
	Hot Water(A)	Inlet&Outlet	80	80	80	80	100
	Steam Trap(A)	Inlet&Outlet	32	32	40	40	40
	Width(W)	mm	900	900	900	900	1000
	Length(L)	mm	1600	1600	1600	1600	1700
	Height(H)	mm	2155	2155	2205	2205	2115

■ SH-H Type (Heating Type)

Item		Unit	SH 100H	SH 200H	SH 300H	SH 400H	SH 500H	SH 600H
Boiler Body	Rated Heating Value	kcal/h	100000	200000	300000	400000	500000	600000
	Rated Heating Value	MWh	0.12	0.23	0.35	0.47	0.58	0.70
	Steam Pressure	MPa	Standard : 0.2MPa
	Water Pressure	MPa	Standard : 1.0MPa
	Material		STS316
	Heating Surface	m²	0.36	0.60	0.96	3.12	4.16	5.20
	Weight	kg	406	416	440	446	462	474
Operating control			SIEMENS Full Automatic System (Automatic Control, Automatic valve, Temperature Sensor)
Hot Water Condition	Amount of Hot Water	㎥/min	171.0	341.8	512.8	683.7	854.7	1025.5
	Amount of Hot Water	㎥/h	10260	20510	30770	41020	51280	61530
	Temperature Condition	℃	60℃ - 70℃
	Amount of Steam	kg/h	194	387	581	774	968	1161
Installation Summary	Automatic Valve Standard	0.2MPa	25	40	40	50	50	65
	Hot Water(A)	Inlet&Outlet	50	50	50	80	80	80
	Steam Trap(A)	Inlet&Outlet	20	20	32	32	32	32
	Width(W)	mm	600	600	600	900	900	900
	Length(L)	mm	1220	1220	1220	1600	1600	1600
	Height(H)	mm	1710	1710	1710	2085	2085	2085

■ SH-H Type (Heating Type)

항 목		단위	SH 700H	SH 800H	SH 1000H	SH 1500H	SH 2000H
Boiler Body	Rated Heating Value	kcal/h	700000	800000	1000000	1500000	2000000
	Rated Heating Value	MWh	0.81	0.93	1.16	1.74	2.33
	Steam Pressure	MPa	Standard : 0.2MPa
	Water Pressure	MPa	Standard : 1.0MPa
	Material		STS316
	Heating Surface	m²	6.24	7.20	8.00	13.00	27.04
	Weight	kg	495	803	879	982	1784
Operating control			SIEMENS Full Automatic System (Automatic Control, Automatic valve, Temperature Sensor)
Hot Water Condition	Amount of Hot Water	㎥/min	1196.5	1367.3	1709.3	2564.0	3418.5
	Amount of Hot Water	㎥/h	71790	82040	102560	153840	205110
	Temperature Condition	℃	60℃ - 70℃
	Amount of Steam	kg/h	1355	1548	1936	2903	3871
Installation Summary	Automatic Valve Standard	0.2MPa	65	80	80	100	100
	Hot Water(A)	Inlet&Outlet	80	80	100	100	150
	Steam Trap(A)	Inlet&Outlet	32	32	40	40	40
	Width(W)	mm	900	900	900	1000	1000
	Length(L)	mm	1600	1600	1600	1700	2000
	Height(H)	mm	2085	2085	2085	2110	2515

อีกหนึ่งผลิตภัณฑ์คุณภาพจาก NITCO
สนใจติดต่อขอรายละเอียดเพิ่มเติมได้ที่
บริษัท น่ำแซอินเตอร์เทรดดิ้ง จำกัด
Tel : 0-2223-2271-3,0-2226-5667-8
Fax : 0-2225-5546,0-2224-8071
E-mail : panasin@nitco.co.th
Website :
http://www.namsae.co.th
http://www.nitcoplus.com/
Facebook: http://www.facebook.com/namsaefanpage
