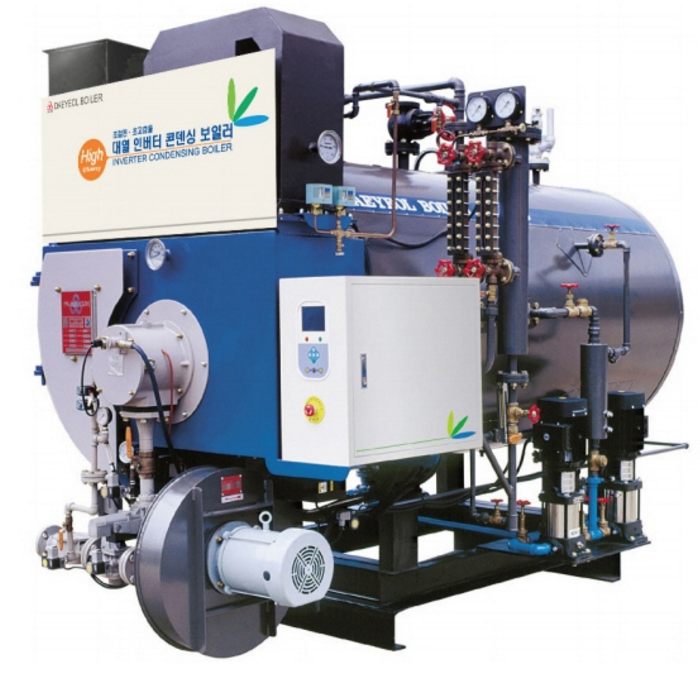

นิทโก้พลัส : Condensing Boiler

Product Detail :

■ DMX(Air Pre-heater equipped) - Steam and Hot Water Boiler (Gas/Diesel Type)

Item			Unit	DMX 100PG	DMX 150PG	DMX 200PG	DMX 250PG	DMX 300PG	DMX 350PG	DMX 400PG	DMX 450PG
Boiler Body	Rated Evaporation		kg/h	1000	1500	2000	2500	3000	3500	4000	4500
	Heat Output		MWh	0.75	1.12	1.50	1.87	2.25	2.62	2.99	3.37
	Hot Water		kcal/h		1G		1.5G	2G		2.5G	3G
	Design Pressure		MPa	1.0 (1.2, 1.4, 1.6 Option)
	Effciency		%	92
	Heating Surface		m²	16	24	29	34	40	53	63	71
	Weight		Ton	3.2	3.5	4	5	6	9	11	13
	Contained Water		Ton	1.2	1.7	2.1	2.8	4.2	4.3	4.8	5.2
Fuel Consumption	Diesel		kg/h	67.9	101.9	135.9	169.8	203.8	237.8	271.7	305.7
	LNG		N㎥/h	70.0	105.0	139.9	174.9	209.9	244.9	279.9	314.9
	LPG+AIR		N㎥/h	48.3	72.4	96.5	120.6	144.8	168.9	193.0	217.1
	Propane (LPG)		N㎥/h	31.2	46.9	62.5	78.1	93.7	109.3	124.9	140.6
	Propane (LPG)		kg/h	63.1	94.6	126.2	157.7	189.3	220.8	252.4	283.9
Burner	Combustion Control System			HI-LOW-Off (Three Stage System)						Proportional System
	Burner Type			Gas Type : Forced Draft Fan (Blast Type) / Oil Type : Diesel (Fluid Power Injection Type)
	Ignition System		Gas	Pilot Ignition Type
	Ignition System		Oil	Diesel Ignition						Gas Ignition
Air Pre- heater	Type			Heat-Pipe Type
	Model			GA-10	GA-15	GA-20	GA-25	GA-30	GA-35	GA-40	GA-45
	Weight		Ton	0.25	0.3	0.35	0.4	0.45	0.5	0.77	0.79
Power Consumption	Feed Water Pump		kWxQ'ty	2.2 x 2	2.2 x 2	3 x 2	3 x 2	4 x 2	4 x 2	4 x 2	4 x 2
	Fan	Steam	kw	2.2	5.5	7.5	11	11	11	11	15
	Fan	Hot Water	kw		5.5		11	11		11	15
	Oil Pump		kW	0.4	0.4	0.75	0.75	0.75	0.75	1.5	1.5
Connection Bore Diameter	Gas Valve		A	25	40	40	50	50	50	50	50
	Oil Vlave		A	20	20	20	20	20	20	20	20
	Feed Water Valve		A	25	25	40	40	40	40	40	40
	Drain Valve		A	40	40	40	40	40	40	40	40
	Safety Valve		A	25	32	40	40	40	32 x 2	32 , 40	40 x 2
	Main Steam Valve		A	50	65	80	80	80	80	100	100
	Hot Water Inlet&Outlet		A		100		125	125		125	150
Installation Summary	Exhaust Port		mm	300 x 435	350 x 480	400 x 565	430 x 625	430 x 665	480 x 725	464 x 775	580 x 755
	Flue Duct		mmØ	300	350	350	400	440	470	500	540
	Width		mm	3160	3700	3830	3960	4125	4940	4545	5120
	Length		mm	1695	1815	1985	2020	2100	2200	2380	2380
	Height		mm	2200	2565	2790	2885	3005	3100	3320	3395

■ DMX(Air Pre-heater equipped) - Steam and Hot Water Boiler (Gas/Diesel Type)

Item			Unit	DMX 500PG	DMX 600PG	DMX 700PG	DMX 800PG	DMX 1000PG	DMX 1200PG	DMX 1500PG	DMX 2000PG
Boiler Body	Rated Evaporation		kg/h	5000	6000	7000	8000	10000	12000	15000	20000
	Heat Output		kW	3.74	4.49	5.24	5.99	7.48	8.98	11.23	14.97
	Hot Water		Gcal/h	3.5G	4G	4.5G	5~5.5G	6~6.5G	7~8G	10G	13G
	Design Pressure		MPa	1.0 (1.2, 1.4, 1.6 Option)
	Effciency		%	92
	Heating Surface		m²	75	87	101	118	142	178	209	277
	Weight		Ton	14	16	19	21	25	27	33	40
	Contained Water		Ton	5.2	6.0	7.1	9.7	11.2	16.6	19.2	26.6
Fuel Consumption	Diesel		kg/h	339.6	407.6	475.5	543.4	679.3	815.2	1018.9	1358.6
	LNG		N㎥/h	349.8	419.8	489.8	559.7	699.7	839.6	1049.5	1399.3
	LPG+AIR		N㎥/h	241.3	289.5	337.8	386.0	482.5	579.0	723.8	965.1
	Propane (LPG)		N㎥/h	156.2	187.4	218.6	249.9	312.4	374.8	468.5	624.7
	Propane (LPG)		kg/h	315.5	378.6	441.6	504.7	630.9	757.1	946.4	1261.8
Burner	Combustion Control System			Proportional System
	Burner Type			Gas Type : Forced Draft Fan (Blast Type) / Oil Type : Diesel (Fluid Power Injection Type)
	Ignition System			Pilot Ignition Type
	Ignition System			Gas Ignition
Air Pre- heater	Type			Heat-Pipe Type
	Model			GA-50	GA-60	GA-70	GA-80	GA-100	GA-120	GA-150	GA-200
	Weigth		Ton	0.82	1.0	1.13	1.26	1.43	1.71	1.9	2.7
Power Consumption	Feed Water Pump		kWxQ'ty	4 x 2	5.5 x 2	5.5 x 2	7.5 x 2	7.5 x 2	11 x 2	15 x 2	15 x 2
	Fan	Steam	kw	15	15	18.5	22	30	37	45	55
	Fan	Hot Water	kW	15	15	18.5	22	30	37	45	55
	Oil Pump		kW	1.5	1.5	1.5	1.5	1.5	1.5	2.2	2.2
Connection Bore Diameter	Gas Valve		A	50	65	65	80	80	100	100	100
	Oil Valve		A	20	25	25	25	25	25	40	40
	Feed Water Valve		A	40	40	40	40	50	50	50	65
	Drain Valve		A	40	40	40	50	50	50	50	50
	Safety Valve		A	40 x 2	40 x 2	40 , 50	40 , 50	50 , 65	50 , 65	65 x 2	80 x 2
	Main Steam Valve		A	125	125	150	150	200	200	200	250
	Hot Water Inlet&Outlet		A	150	200	200	200	250	250	250	250
Installation Summary	Exhaust Port		mm	464 x 775	580 x 755	580 x 865	580 x 935	640 x 955	750 x 1065	810 x 1115	1160 x 1170
	Flue Duct		mmØ	560	620	670	710	800	870	980	1130
	Width		mm	5085	5695	5790	6415	6730	7520	8170	9265
	Length		mm	2460	2480	2630	2800	3020	3140	3350	3940
	Height		mm	3565	3615	3800	3960	4225	4350	4700	5200
